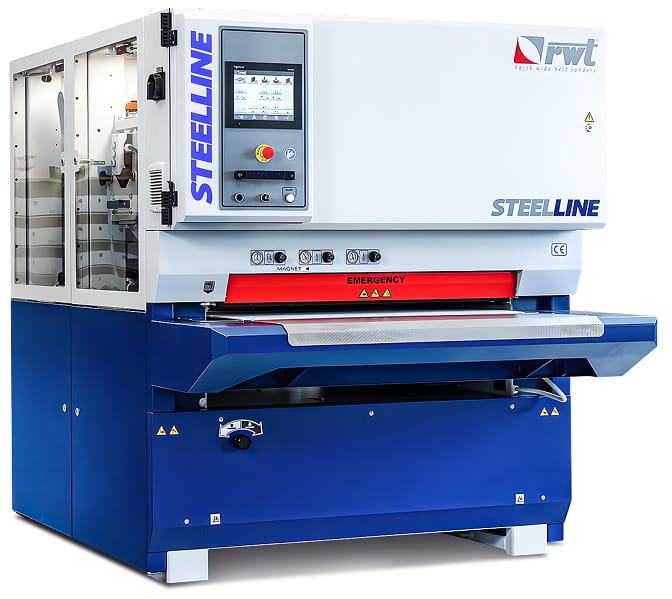

BSM 1100
The STEELLINE BSM machines are industrial solutions for deburring, grinding and final finishing of metal parts after cutting or pressing. They are designed to replace demanding and dangerous manual work and to significantly increase both the efficiency and the quality of production.
Basic machine parameters
- Working width 1100 mm
- Počet jednotek 1 - 4
- Diameter of the rubber-coated roller 180 (240) mm
- Number of discs in the unit 10
Working units of the machine
R - Sanding unit with a sanding belt
It removes burrs protruding above the material surface, removes scale and corrosion from the surface, final surface finishing.
D - Disc unit
With disc brushes in two rows with flap brushes - it rounds edges and removes the oxide layer, slag and scale.
B - Brushing unit made of abrasive fleece
It cleans and pre-polishes the material surface.
A - Gyroscopic unit
With flap brushes - deburring and edge rounding while keeping the protective film, evening out the material surface.
Operations and their recommended units
Burr removal
Oxide removal
Final surface
Edge rounding
Slag removal
Standard machine equipment
- Automatic measurement
- Hypalon feed belt
- Touch panel 10.4" ( 7.5")
- Tilting panel
- Pneumatic lifting of the R unit
- Electric motor lifting of the D, A, B units
- Noise silencer
Accessories
- Magnetic table
- Vacuum table
- Combined table - magnet + vacuum
- Electric motor lifting of the R unit
Technical specification
The STEELLINE BSM series machines are industrial solutions for deburring, grinding and final finishing of metal parts after cutting or pressing. They are designed to replace demanding and dangerous manual work and to significantly increase both the efficiency and the quality of production.
- Working width 1 100 mm
- Počet jednotek 1 - 4
- Diameter of the rubber-coated roller R 180 (240) mm
- Number of discs in unit D až 10
- Průměr disku 155 mm
- 165 mm
- 260 mm
- Brush diameter B 200 (300) mm
- Sanding belt length 1900 (2200) mm
- Počet kartáčů A 4x
- Brush size A 250x250 mm
- Workpiece thickness min-max 0,2 - 160 mm
- Feed speed 0,2 - 10 m/min.
